silindir parlatma makinesi

1 ,Processing objects and requirements:

1.1 Purpose:The machine is mainly used for polishing stainless steel tank, cylinder,cone, dish head etc. The inner and outer walls grinding and polishing.

2.2 The workpiece range requirements:

workpiece diameter range: 450mm ~ 3800mm;

horizontal polishing length: ≤3000mm (turn around can reach 6000mm)

2,Equipment main structure and properties

Machine consists of cross hosts, standard polishing head, electric control system, pneumatic system and dish head rotaring table, tank turing roll.

3, Main technical parameters:

3.1. Polishing Motor power: 4kw ;

Belt size: 1880 × 50mm

Buffing wheel size:300*50*32mm

3.2. Dish rotaring table motor power: 1x0.75kw;Speed:1-30rpm, variable-frequency drive.

Tank turing roll motor power: 2x3 kw;Speed: 1-50rpm, variable-frequency drive.

3.3. Polishing efficiency: Head 4-6 (m²/h); tank 8-12 (m²/h), Two polishing head,efficiency doubled.

3.4. Power: AC three-phase 380V; 50HZ; Input power 16-20kw

3.5.The gas source:. 0.6 m³/ h ; 0.4 ~ 0 6Mpa;pipe:8x5mm

3.6.Processing noise: ≤75db(2 m measuring distance away from polishing head)

3.7. Machine dimensions: length x width x height 6200x1500x3150mm(Foundation need build according to the drawing )

One year warranty, can be extended according to customers' requirement.

Overseas third-party support available.

Engineer available to service machinery overseas.

Welcome to be our international agents and distributors!

We are manufacturer of polishing machines for all metal products,

welcome to your inquiry and visiting!

Our company and factory is located in Hefei, Anhui, China.

We have been specialized in metal polishing area for 8 years. We can design machines for different shape products as your requirements.

We have more than 70% market share for dishes and tanks polishing machines in China.

We have great reputation in China and aboard.

Tank polishing machine

Dished head polishing machine

Dual-use tank and seal head polishing machine

Plane polishing machine

Kitchenware polishing machine

kitchen sinks polishing machine

Bent pipe polishing machine

Square pipe polishing machine

Round pipe polishing machine

Sand belts polishing machine

Car hubs polishing machine

Self-automatic polishing machine

Matching products for polishing process

Polishing material:

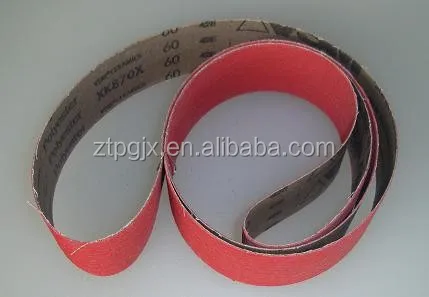

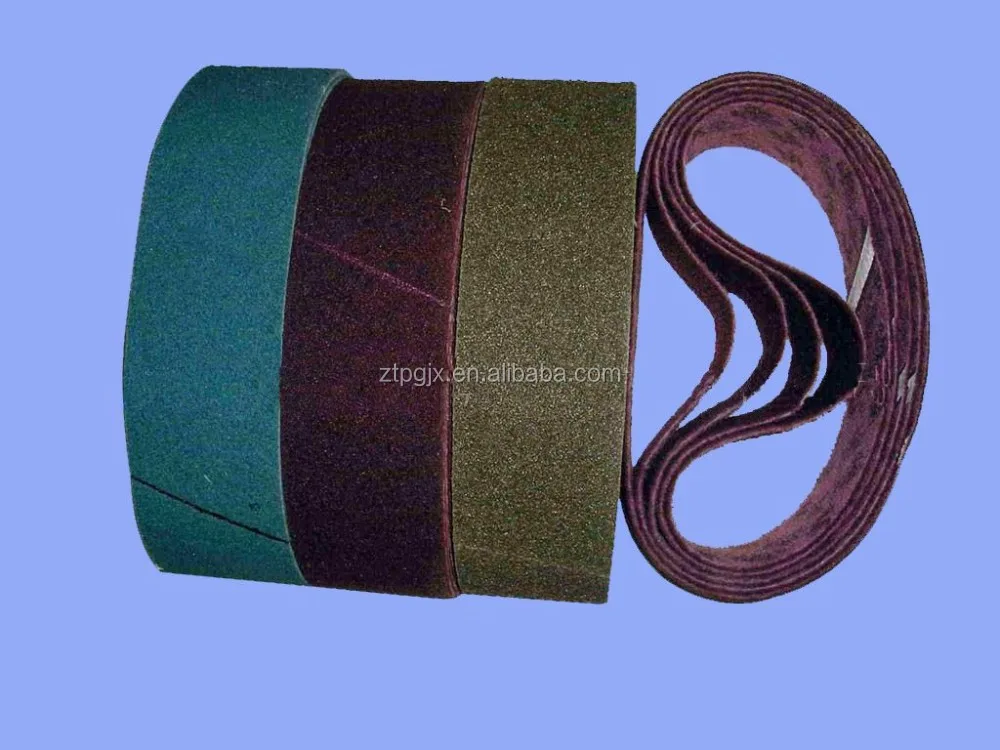

1,Abrasive belts:

Surface Finish:

1. Ra≤0.1um and very good mirror finish.

2. hairline finish(Broken lines or snow line)

2,Buffing wheels:

Surface Finish: 8K mirror finish or hairline finish

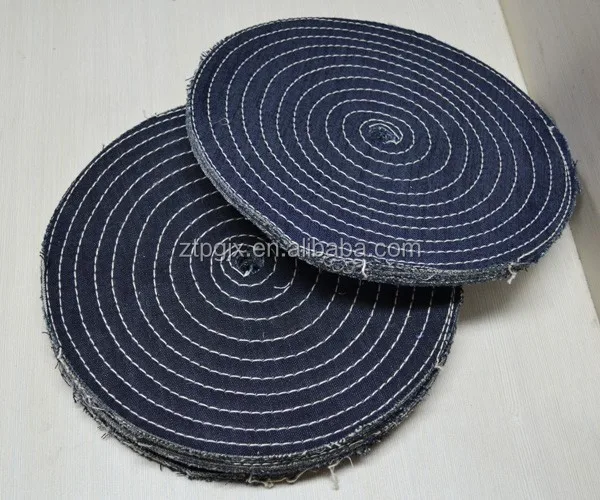

Flax wheel Cloth wheel

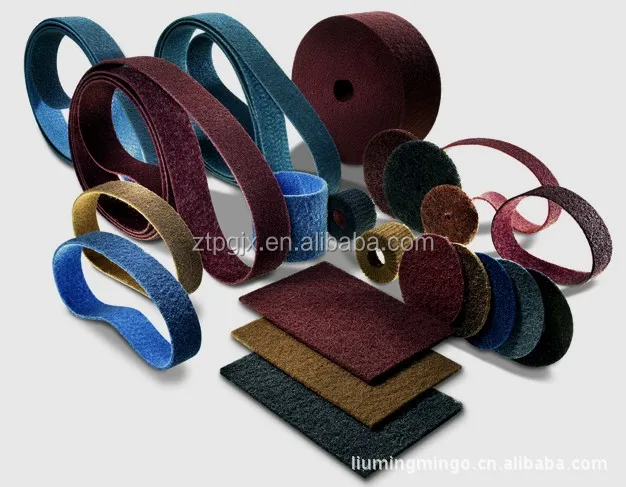

Hemp wheel Non-woven wheel

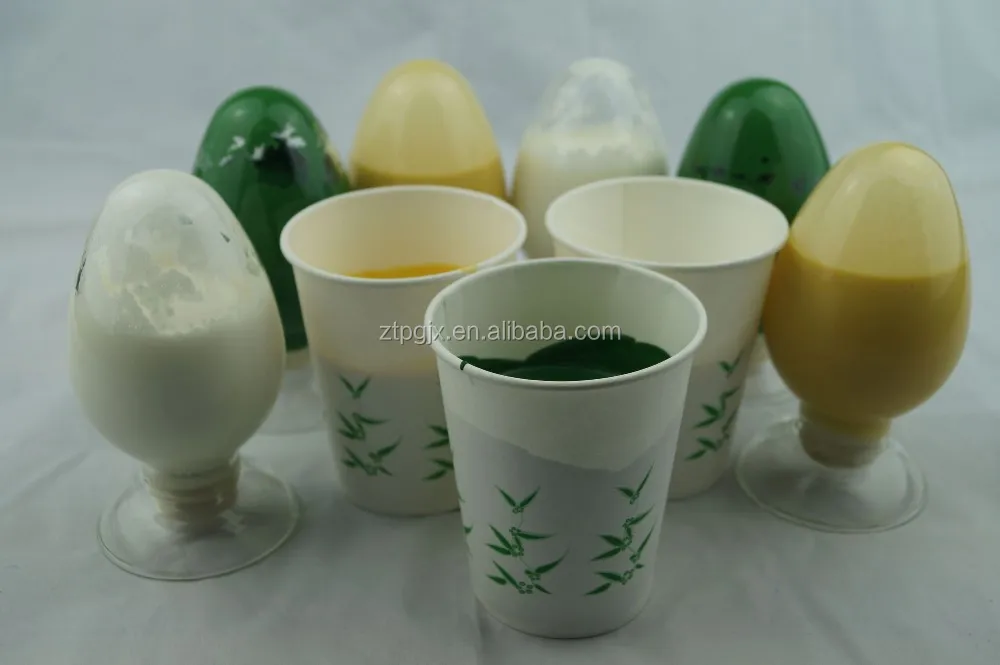

Solid Wax Liquid Wax

Other suitable buffing wheels:

We can supply a solution for a polishing process.
