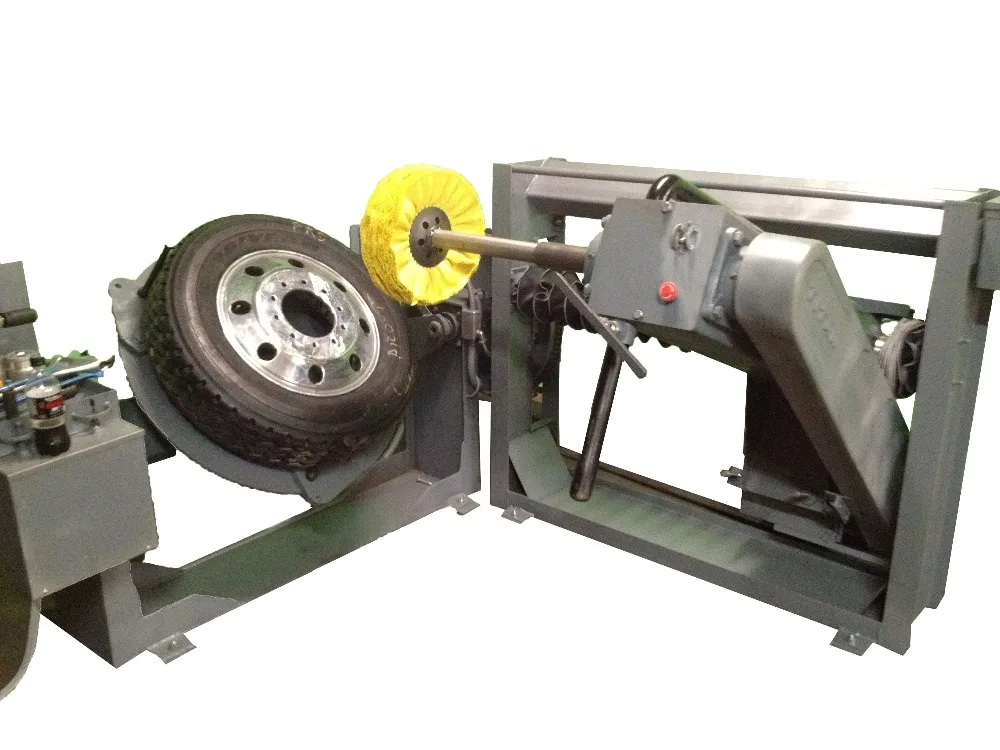

Alloy Wheel Polishing Machine / Truck Hub Polishing Machine For Grinding Cab Tires

1 Processing objects and requirements:

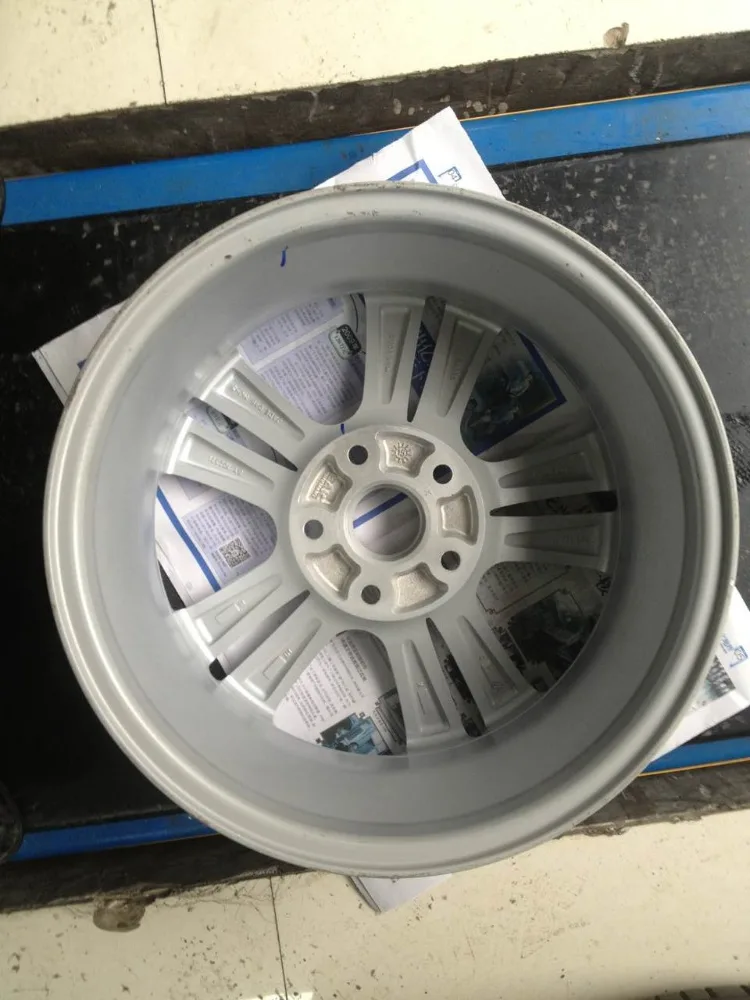

1.1 Purpose: The machine is mainly used for polishing aluminium alloy wheel . The inner and outer walls grinding and polishing.

2.2 The workpiece range requirements:

workpiece diameter range: 350mm ~ 800mm;

with tyre or not.

2 Equipment main structure and properties

Machine consists of hosts, standard polishing head, electric control system, pneumatic system and rotaring table.

3 Main technical parameters:

3.1. Polishing Motor power: 4kw ;

Buffing wheel size:300*50*32mm

3.2. Rotaring table

Motor power: 1x0.75kw;Speed: 1-30rpm;variable-frequency drive

Fixture: pneumatic clamp

3.3. Power: AC three-phase 380V; 50HZ; Input power 5kw

3.4.The gas source:. 0.6 m³/ h ; 0.4 ~ 0 6Mpa;pipe:8x5mm

3.5.Processing noise: ≤85db(2 m measuring distance away from polishing head)

3.7. Machine dimensions: length x width x height 2200x1800x1600mm(Foundation need build according to the drawing )
